Mar 08

Passing a Param object to a SharePoint PowerApp list form and why it doesn’t work.

I spent a lot of my time with SharePoint classic, building small business apps using JSLink and JavaScript embedded in the pages. Nothing really fancy, just things like pre-populating fields for Parent/Child relationship lists and things like that. As I was thinking about writing a conference session on updating old solutions into the modern world, I was taking a look at how we could achieve a similar behaviour using the modern approach of SharePoint list forms customised in PowerApps using the Param object to read the QueryString.

For this problem, I went back to one of the very first JSLink demos I did at SPS Brussels, showing how a parent list of breweries could be used to display and filter a list of beers based on the selected brewery. To achieve this, there of course had to be a link between the brewery and the beer. To enable this, each brewery had a button created in JSLink that opened the NewForm.aspx of the beer list, and injected the parent ID of the brewery using the QueryString and some JavaScript to hide the drop down field from the user. A nice simple example of a parent child list relationship.

To achieve the same using PowerApps and Custom Field rendering, I created my two lists.

  • The Brewery list contains just the name of the brewery and a calculated column used to generate the clickable link to create the beer.
  • The beer list contains the name of the beer, a link to the brewery, the beer type and an image of the label.

The premise was simple, to create a clickable link using custom column formats that opened the Beer lists Newform.aspx, passing in the ID and name of the brewery as Parameters. Then to edit the Beer list form and create a PowerApp that accepted the parameters and configured the app form accordingly. Straightforward huh? Not so much…

The custom column format.

This was fairly simple to achieve, first add a calculated column to the Brewery list that just copies the Title. This gives us a field that we can use to anchor the clickable link on in the list view. Then I used the following simple Custom Column Format to change the rendering of this calculated field to provide a text link.

{
    "$schema": "http://columnformatting.sharepointpnp.com/columnFormattingSchema.json",
    "debugMode" :"true",
    "elmType": "a",
    "txtContent": "Create Beer for this Brewery",
    "attributes": {
        "href" : "='/sites/CustomFieldRenderingTest/Lists/Belgian%20Beers/NewForm.aspx?BrewName=' + @currentField + '&BrewID=' + [$ID]"
    }
}

You can read more about custom column formats on docs.microsoft.com here.

This creates a clickable link that passes the title and ID of the current list object to the new form in the Beer list. With this in place, we switch to the Beer list and customise the list form in PowerApps.

Building the PowerApp and using Param

This was a fairly new venture for me as I haven’t done a lot of PowerApps work todate, but looking at the docs from MS, I just needed to call the Param object and index it with the entry of my query string. To test this, I just added a label to the default form and set the Text value to be Param(“BrewName”).

I published the PowerApp and headed back to the brewery list. Clicking on the “Ccreate Beer for this Brewery” link opened the form as expected, but there was no value in my label.

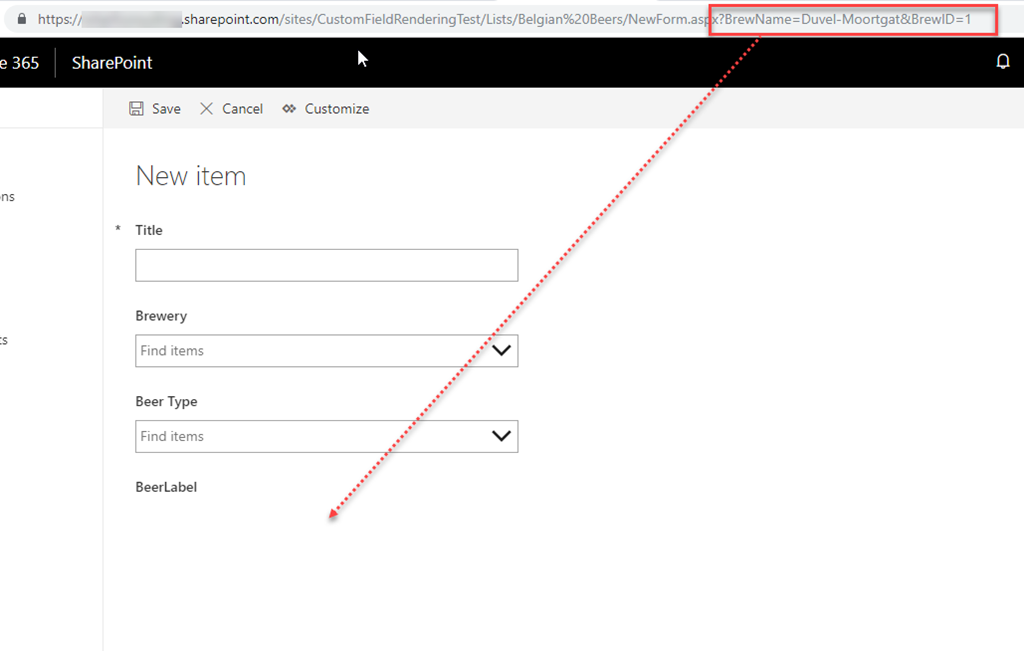

Image showing the URL containing the Param and the fact it doesn't appear in the label



After much frantic investigation and a conversation to confirm my thoughts with my good friend Laura, I came to the conclusion that I was using the Param object correctly and that SharePoint wasn’t passing through the QueryString values. In order to validate this, I decided to open the PowerApp directly in PowerApps which is pretty much what SharePoint does in the embedded list form. I used Fiddler to capture the URL which showed me I had to call the Web.PowerApps.Com URL, passing in a number of Parameters, the most important of which is the Appid and Environment Name.

With this info to hand, I then created a second calculated column, with a custom column format with the new href value (Now including my additional parameters as well as the required ones.).

{
    "$schema": "http://columnformatting.sharepointpnp.com/columnFormattingSchema.json",
    "debugMode" :"true",
    "elmType": "a",
    "txtContent": "Create Beer for this Brewery (PowerApp Direct)",
    "attributes": {
        "target":"_blank",
        "href" : "='https://web.powerapps.com/webplayer/app?BrewName=' + @currentField + '&BrewID=' + [$ID] + '&source=portal&screenColor=rgba(0%2c+176%2c+240%2c+1)&appId=%2Fproviders%2FMicrosoft.PowerApps%2Fapps%<<ID REMOVED>>&environment-name=Default-<<ENV ID REMOVED>>'"
    }
}

Image show the brewery list with the links containing the Param object.

Clicking on the PowerApp link opens the PowerApp directly with the label populated as expected with the Brewery name.

Image showing the PowerApp with the Param in the URL and the properly populated label.

Having confirmed the incorrect behaviour, I spoke to someone in the SharePoint Product Group and showed them the behaviours I was seeing. After a short discussion and some further testing of the configuration in PowerApps, they confirmed that this looked like a bug. I’ve since raised a ticket through the portal and we’re now awaiting a resolution for the issue.

Once this querystring problem is fixed, I think this opens up a number of scenarios that saw a lot of use in SharePoint classic in the past and I know I’ll be using this technique in the future to generate business solutions that make use of the PowerApps infrastructure.

Paul.
